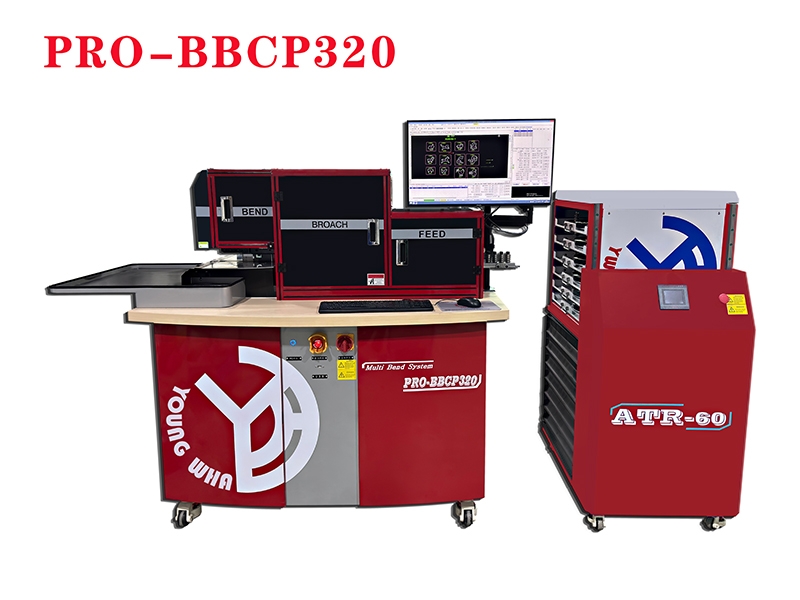

Model ：PRO-BBCP320

FEATURES

●Using the < (PIN bending)>, different from BBS bending, the dual PIN bending is perfect workable as below list Angle within 115° can be done in one time;

● No scratches on the bending position;

● Small angles, small size, such as aircraft holes and other small enclosed graphics can be done in one time;

●The minimum length of C Angle is 6mm.

TECHNICAL SPECIFICATIONS

※  Function

▲Feeding

▲Bending

▲Bridge

▲Lipping

▲Cutting

▲Hole

▲Nicking

▲Perforation

▲Broaching ：2sets

▲Bending System：PIN Bending

▲Cutting System：Scissors cutting system

● Rule Thickness(mm) ： 0.45~1.07 (2pt~3pt)

● Rule Height  ： 23.60~32.0（mm）

● Rule Cassette ：1、Double Rotating cassette  2、ATR-60 Automatic lifting cassette

● Dimension ：2100(L)x960(W)x1520(H)

● Power Requirement ：Single Phase 220V/15A/3KW/50~60Hz

● Air Requirement ：over 10kgs

● Weight ：600KG

● File Formats ：AI/DXF/DWG/NC/CFF2/DDES
