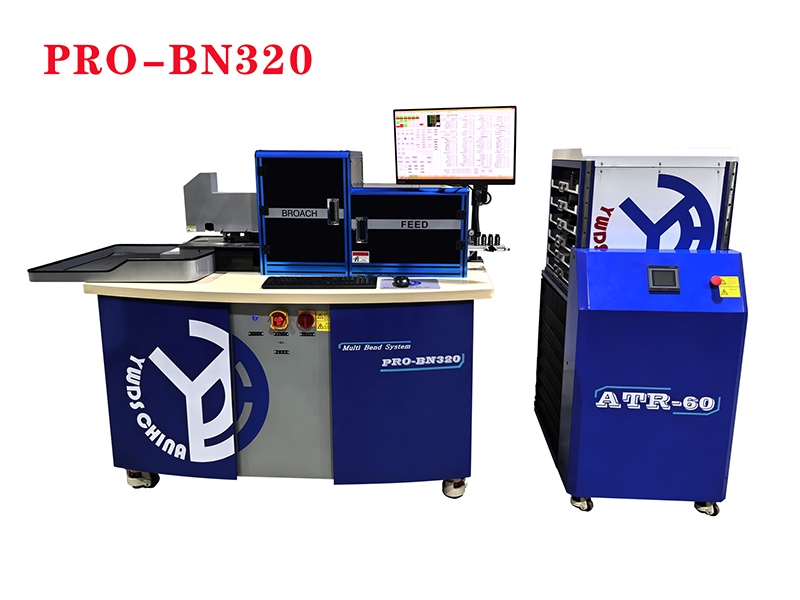

Model ：PRO-BN320

FEATURES

● Rule-feeding by lead-screw driving,high speed and accuracy.

● All the die-making functions are included:such as cutting,multi-bridge,Lipping,broaching,perforation,nicking.

● Quick changing tools.

TECHNICAL SPECIFICATIONS

※  Function

▲Feeding

▲Bending

▲Bridge

▲Lipping

▲Cutting

▲Hole

▲Nicking

▲Broaching：（1sets）

▲Bending System：BBS Bending

▲Cutting System：Bottom cutting

● Min. bending size（mm） ：1.5~2.0mm

● Min. Cutting size(mm)：2.0~3.0mm

● Rule Thickness(mm) ： 0.45~1.07mm(1.5pt~3pt)

● Rule Height  ：23.60~32.0（mm）

● Rule Cassette ：1、Double Rotating cassette  2、ATR-60 Automatic lifting cassette

● Dimension ：2650(L)x1120(W)x1750(H)

● Power Requirement ：Single Phase 220V/15A/3KW/50~60Hz

● Air Requirement ：over 10kgs

● Weight ：500KG

● File Formats ：AI/DXF/DWG/NC/CFF2/DDES
