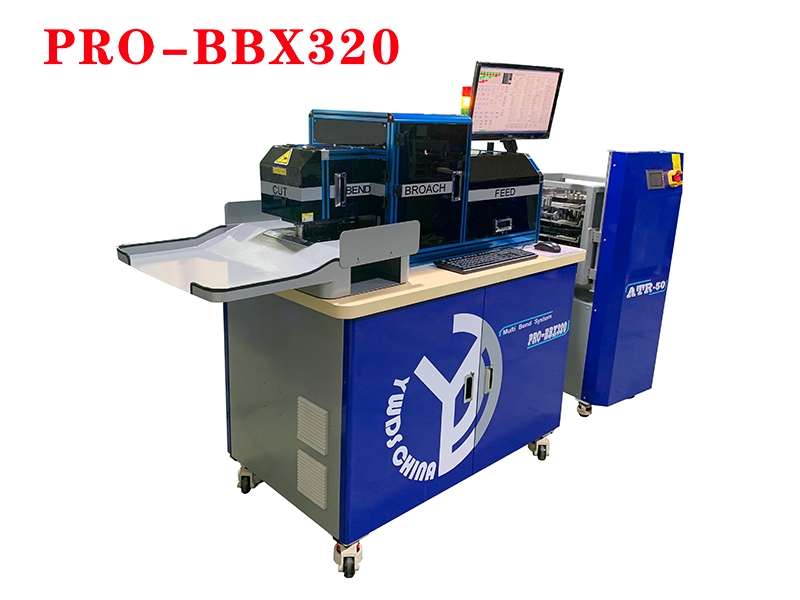

Model ：PRO-BBX series

FEATURES

● Adopting the structure of bending and cutting,quick changing tools,high efficiency , unattended, automatic operation.

● All the die-making functions are included:such as cutting,multi-bridge,Lipping,broaching,perforation,nicking.

● Multi-broaching with different tools for multi-angle broaching.

TECHNICAL SPECIFICATIONS

※ Function

▲Feeding

▲Bending

▲Bridge

▲Lipping

▲Cutting

▲Hole

▲Nicking

▲Perforation

▲Broaching

Cutting System ：

1、 Bending and Cutting in one；

2、 Bottom cutting system；

3、 Scissors cutting system

● Rule Thickness(mm) ： 0.71~1.05（2pt~4pt）

● Rule Height  ： 23.8~32.0（mm）

● Rule Cassette ：1、Single Rotating cassette  2、ATR-60 Automatic lifting cassette

● Dimension ：1990(L)x810(W)x1510(H)

● Power Requirement ：Single Phase 220V/15A/3KW/50~60Hz

● Air Requirement ：over 10kgs

● Weight ：650KG

● File Formats ：AI/DXF/DWG/NC/CFF2/DDES
