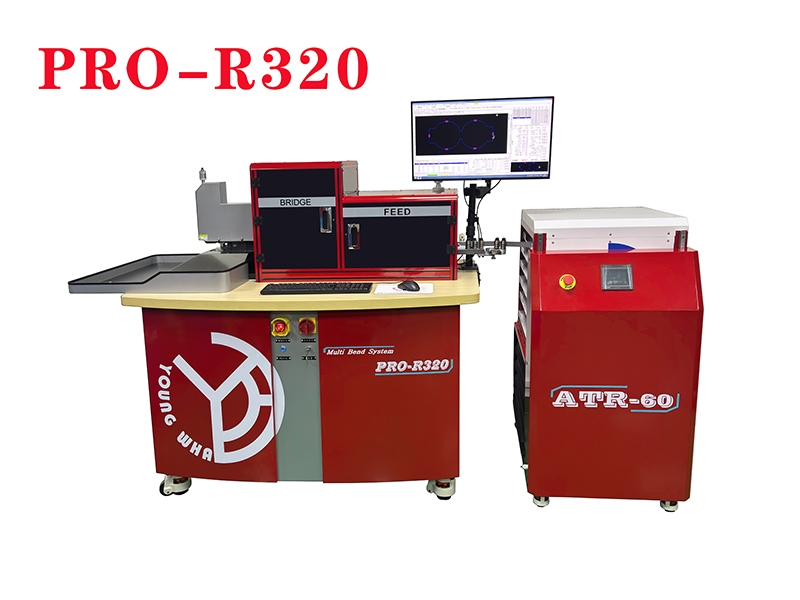

Model ：PRO-R320

FEATURES

● It features a scissor-blade cutting that freely switches between bottom-punch and one pass cutting modes.

● The ultra-short cutting distance shortens blade dwell time and eliminates jams, guaranteeing continuous high-speed operation.

● Driven by next-generation servo technology, it delivers smooth, controllable power for higher cutting accuracy and stability,burr-free edges and significantly improving die precision.

TECHNICAL SPECIFICATIONS

※  Function

▲Feeding

▲Bending

▲Bridge

▲Lipping

▲Cutting

▲Hole

▲Bending System：BBS Bending

▲Cutting System：Bottom Cutting mode & Single-Cut  Mode

● Min. bending size（mm） ：1.5~2.0mm

● Min. Cutting size(mm)：2.0~3.0mm

● Rule Thickness(mm) ： 0.45~1.07mm(1.5pt~3pt)

● Rule Height  ：23.60~32.0（mm）

● Rule Cassette ：1、Double Rotating cassette  2、ATR-60 Automatic lifting cassette

● Dimension ：2650(L)x1120(W)x1750(H)

● Power Requirement ：Single Phase 220V/15A/3KW/50~60Hz

● Air Requirement ：over 10kgs

● Weight ：400KG

● File Formats ：AI/DXF/DWG/NC/CFF2/DDES
