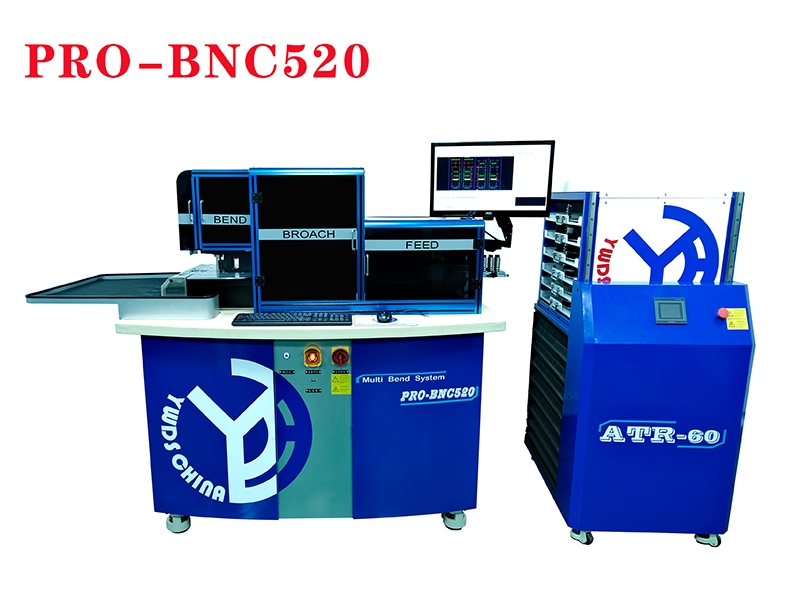

Model ：PRO-BNC520

FEATURES

● Rule-feeding by lead-screw driving,high speed and accuracy.

● All the die-making functions are included:such as cutting,multi-bridge,Lipping,broaching,perforation,nicking.

● Bridge height and width can be automatically set.

TECHNICAL SPECIFICATIONS

※ Function

▲Feeding

▲Bending

▲Bridge

▲Lipping

▲Cutting

▲Hole

▲Nicking

▲Perforation

▲Broaching

▲Chamfer

● Rule Thickness(mm) ： 0.71~1.42（2pt~4pt）

● Rule Height  ： 23.8~60.0（mm）

● Rule Cassette ：1、Single Rotating cassette  2、ATR-60 Automatic lifting cassette

● Dimension ：2170(L)x920(W)x1540(H)

● Power Requirement ：Single Phase 220V/15A/3KW/50~60Hz

● Air Requirement ：over 10kgs

● Weight ：700KG

● File Formats ：AI/DXF/DWG/NC/CFF2/DDES
