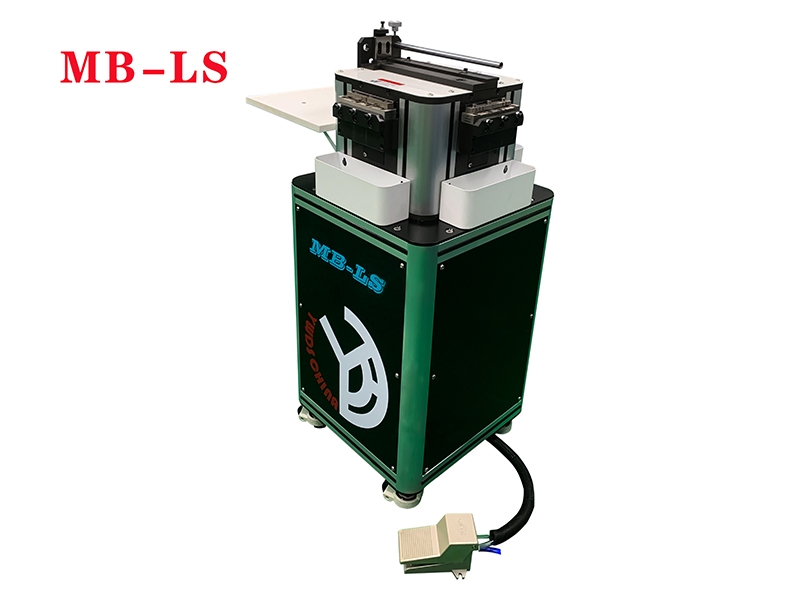

Model ：MB-LS

1. It can process Multi-bridge for both creasing lines and die-cutting blades, and it can be customized for different bridge sizes by simply replacing the corresponding molds, making it widely applicable.

2. It can achieve multiple processing functions such as automatic bridge,Lipping, and cutting. It can complete several key processing steps for die-cutting blades on a single machine, improving processing efficiency and reducing equipment footprint and labor input.

TECHNICAL SPECIFICATIONS

Function

v Cutting blade

v Flat cutting

v Lipping

v Bridge

Customized Options

Ø Hole Punching

Ø Butterfly Buckle

Rule Thickness(mm): 0.71~1.07 (2pt~3pt)

Rule Height(mm): 23.60~32.0 (mm)

Dimension(mm): 990（L）x670(W)x450(H)

Power Requirement: Single Phase 220V/15A/3KW/50~60Hz

Air Requirement: over 10kgs

Weight: 100KG
