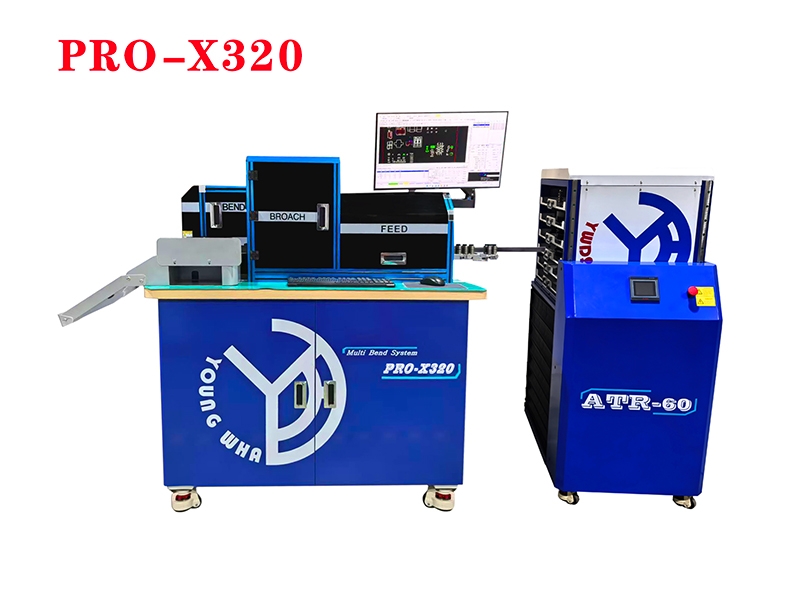

Model ：PRO-X320

FEATURES

● Adopting the structure of bending and cutting,quick changing tools,high efficiency , unattended, automatic operation.

● All the die-making functions are included:such as cutting,multi-bridge,Lipping,broaching,perforation,nicking.

● Multi-broaching with different tools for multi-angle broaching.

TECHNICAL SPECIFICATIONS

※ Function

▲Feeding

▲Bending

▲Bridge

▲Lipping

▲Cutting

▲Hole

▲Cutting System ：Bending and Cutting in one；

● Rule Thickness(mm) ： 0.45~1.07mm(1.5pt~3pt)

● Rule Height  ： 23.6~32.0（mm）

● Rule Cassette ：1、Double Rotating cassettee  2、ATR-60 Automatic lifting cassette

● Dimension ：1990(L)x810(W)x1510(H)

● Power Requirement ：Single Phase 220V/15A/3KW/50~60Hz

● Air Requirement ：over 10kgs

● Weight ：400KG

● File Formats ：AI/DXF/DWG/NC/CFF2/DDES
